Equipment Installation

Equipment Installation

งานยกติดตั้งอุปกรณ์

SCOPE DESCRIPTION

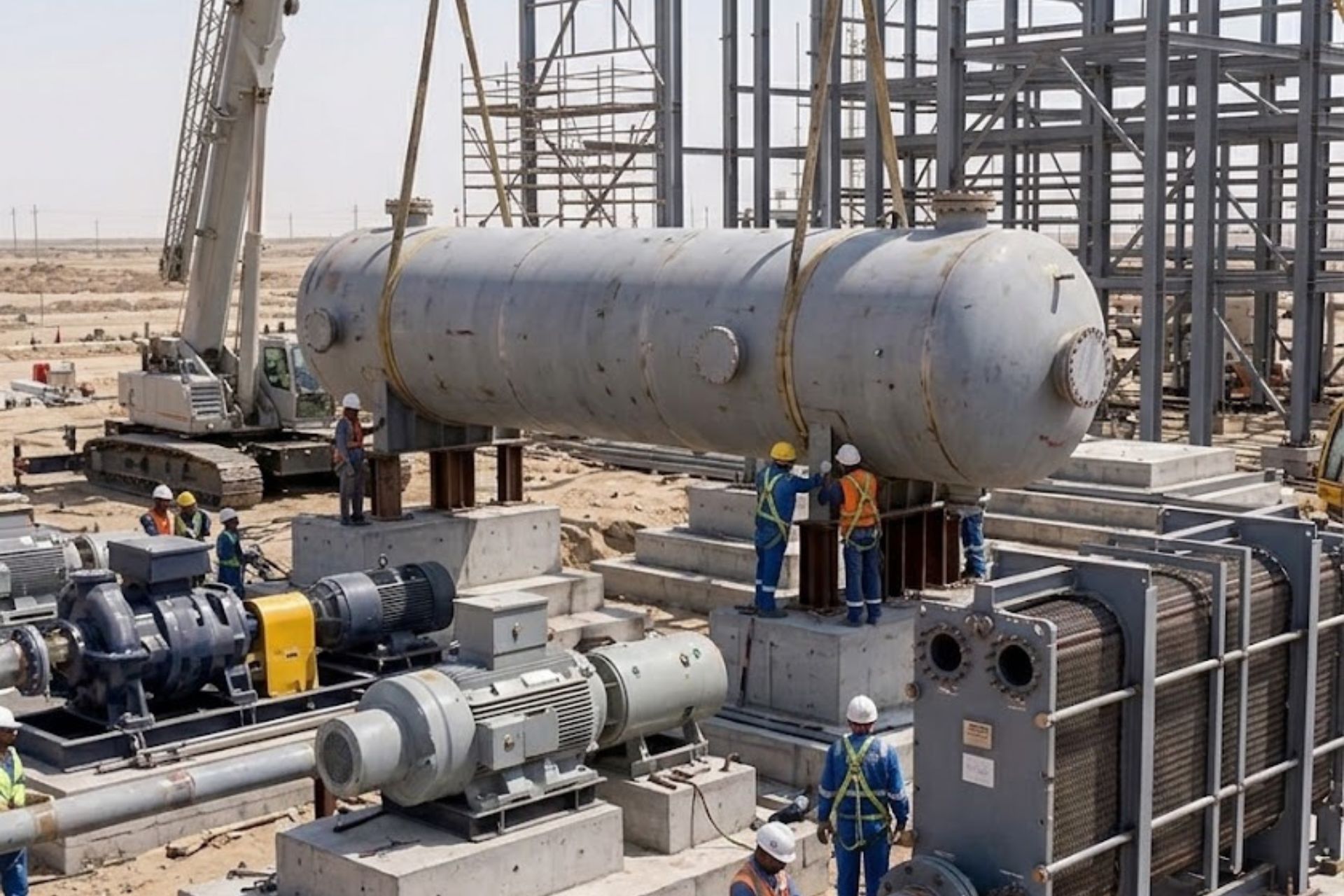

Rigging, positioning, and final installation of static process units (reactors, columns, shell-and-tube heat exchangers, plate heat exchangers) and rotating equipment (centrifugal pumps, multi-stage compressors, turbines). Critical engineering operations include precision leveling, shimming, optical internal alignment, and laser shaft alignment to eliminate soft foot conditions and ensure vibration-free startup.

ขอบเขตงาน

บริการยกติดตั้งเครื่องจักรกลหลักในกระบวนการผลิต ทั้งเครื่องจักรกลหมุน (Rotating Equipment เช่น ปั๊มน้ำ, คอมเพรสเซอร์, กังหัน) และเครื่องจักรกลสถิต (Static
Equipment เช่น หอกลั่น, ถังปฏิกรณ์, เครื่องแลกเปลี่ยนความร้อน Plate/Shell & Tube) ครอบคลุมการปรับตั้งแนวระนาบ การตั้งศูนย์เพลาด้วยเลเซอร์ (Laser Shaft Alignment) เพื่อป้องกันการสั่นสะเทือนและความเสียหายต่อแบริ่ง

Deliverables

Laser shaft alignment tolerance < 0.05 mm, soft foot check < 0.05 mm

Reference Standards : API 686, ISO 10816

Leveling tolerances ±1.0 mm, internal tray horizontal leveling verification

Reference Standards : PIP REIE686

Full cold alignment report, vendor sign-off checklist, rotation test record

Reference Standards : ISO 9001 QA/QC
